Electrophoresis System




Brand WealTec

GES and Mini GES is the submarine cell comprises with gel tank, gel tray, top l id, casting module and red / black L type electrode. This unit is built by inject ion mode technology, its unique Dams-claw* guarantees no leakage while gel casting, different size trays and combs load different volume nucleic acid samples. Quick assembling L type electrode is easily to be cleaned and replaced with its platinum wire.









Features
   Unique anti-leakage design for gel casting system
  Fluorescence rule printed on the sample tray
  UV transparent sample tray




Applications
   Education, university, academic and research institute
  Clinical and diagnostic sample screening
  Analytical chemistry, molecular laboratory
  Food industrial and inspection laboratory
  Drug discovery, Biotechnology company
  Proteomics, genomics core facility










miniGES Complete




miniGES Complete

Small size horizontal gel electrophoresis system, Mini GES can accommodate optional trays with
   10 x 7cm.
  6.5 x 7 cm.




ELITE 3000 Power Supply
the maximum voltage output of 300V and current output 400mA, with 4 sets output terminal mainly for routine electrophoresis. Adjustable voltage and current in minimum 1 V and 1 mA increment provide flexible condition and parameter settings








GES Complete
Horizontal gel electrophoresis system, GES with variable tray selection of
   10 x 15cm.
  7 x 15cm.
  15 x 15 cm.




ELITE 3000 Power Supply
the maximum voltage output of 300V and current output 400mA, with 4 sets output terminal mainly for routine electrophoresis. Adjustable voltage and current in minimum 1 V and 1 mA increment provide flexible condition and parameter settings

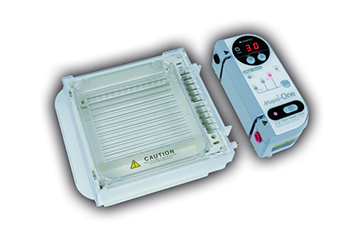

Mupid-One Electrophoresis System




What makes this system so safe?

For prevention of an electric shock, the system is running only if both parts (chamber and power controller) are connected and if the lid is closed! With an open lid the main power cant be switched on.


What makes this system so easy to use?
The power controller can be disconnected easily. Therefore the chamber is safe and easy to clean up. The power controller is easy to use. Seven conventional voltages (18 V, 25 V, 35 V, 50 V, 70 V, 100 V and 135 V) are available. Peak voltage is constant (140 V) and output level changes through pulse control. A timer including an alarm function is included. All parameters of the last run are memorized and automatically saved.




The MupidTM One comes with these accessories:
   Gel casting set including 4 combs. The combs can be used from both sides
    (13 wells and 26 wells).

  Two gel trays small (S) for the preparation of mini gels with one comb
  (13 or 26 samples) One gel tray large (L) for the usage of up to 4 combs
  (up to 26 x 4 samples). The maximum lenght of separation for the use of
  4 combs is 2.7 cm.
